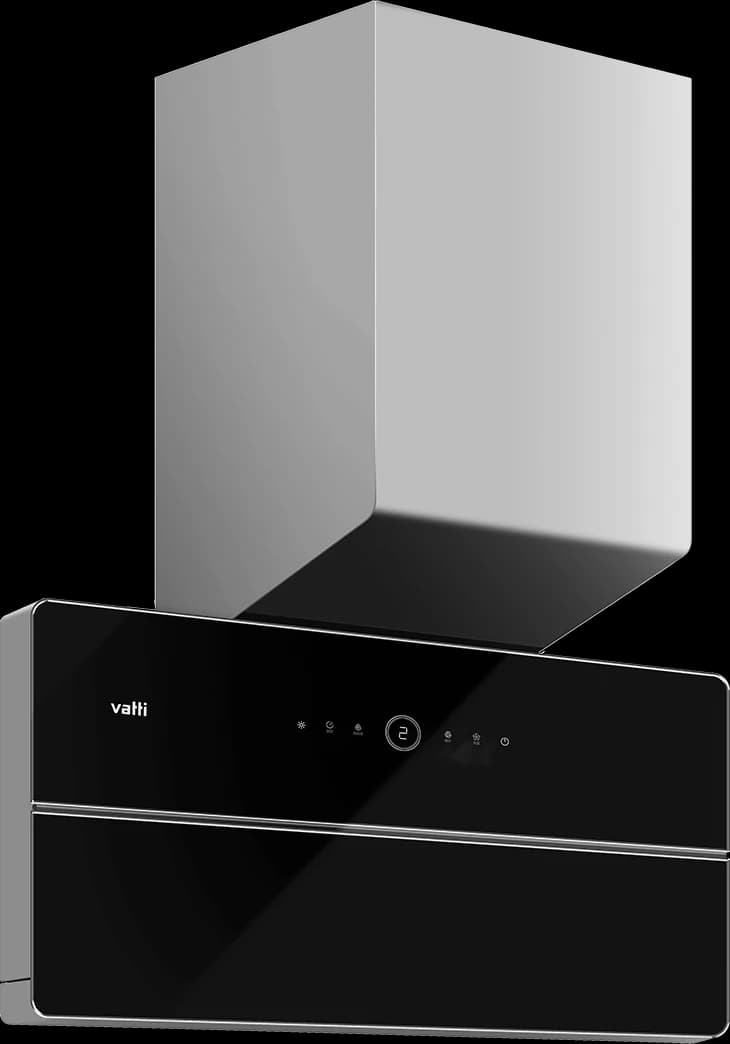

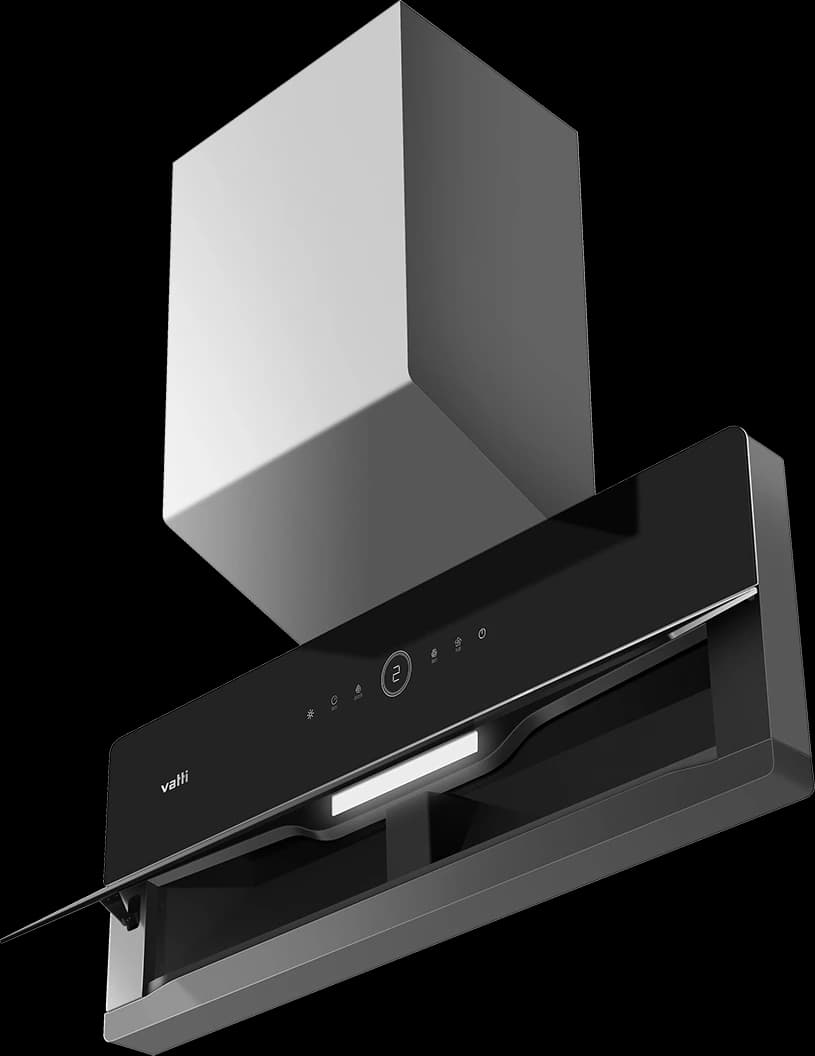

Slim Series Type Range Hood V995

Dimensions and installation

The figures off the V995 drawing, in full. Whether it fits is the question that ends a shortlist, so it is answered here rather than four megabytes into a PDF.

Dimensions (PDF)

How it compares

The V995 against the models it is usually shortlisted with. Press a column to sort by it.

Questions about the V995

What size is the VATTI V995?

898 mm wide, 315 mm deep and 911 mm tall with the chimney. The front is only 136 mm deep. Built into a cabinet it needs an 898 mm opening with a removable shelf above the hood.

How high should the V995 be installed above the hob?

300 to 380 mm from the hob surface to the bottom of the hood, or 1,150 to 1,230 mm off the floor over a standard 850 mm cabinet.

What ducting does the V995 need?

A 7 inch run. The outlet is 190 mm across and the hose is 180 mm inside, 185 mm outside; the hole sits 2,310 to 2,390 mm off the floor, back to back or to the side.

Is 450 Pa enough for a condominium?

For a short, direct duct run, yes. 450 Pa is the lowest static pressure in the hood range, so on a high floor with a long shared riser and several bends it is the wrong end of the catalogue: the V997 holds 1,200 Pa and the V929 1,300 Pa in the same slim shape.

How is the V995 cleaned?

A cold-wash auto-clean cycle, and a water-proof motor that makes running water through the canopy safe. Oil filtration is 92%.

What warranty does the V995 carry?

Two years on the hood and ten years on the motor, for the original buyer, bought from an authorised dealer. Register it at VATTI eWarranty at the time of purchase.

How much is the V995 and where can I buy it?

VATTI Malaysia does not sell online. Find your nearest authorised dealer in the dealer directory, or send us your kitchen layout and we will point you at the one that stocks it.
