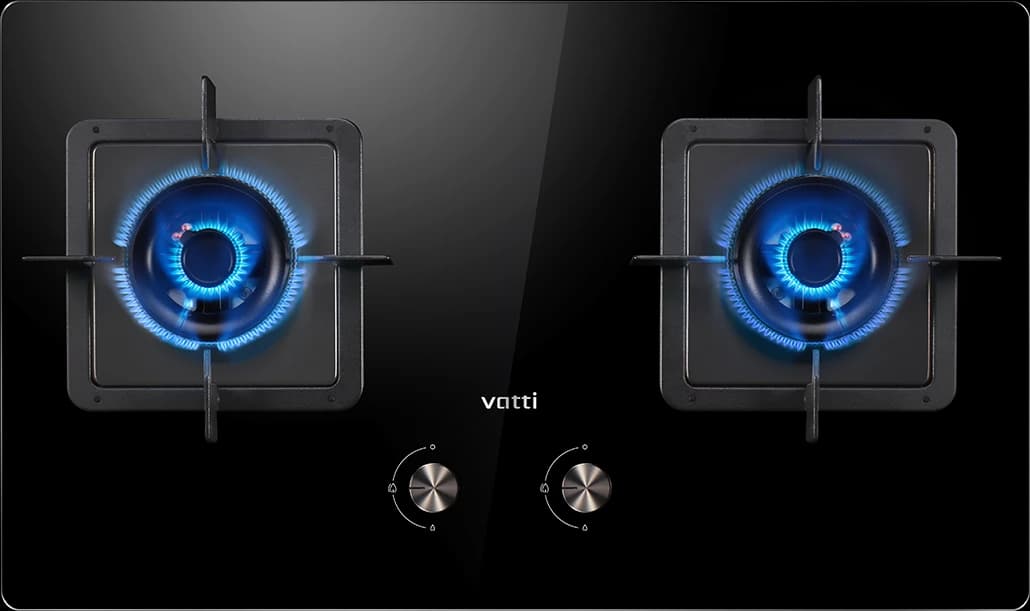

VATTI Oylmpic Hob M822G

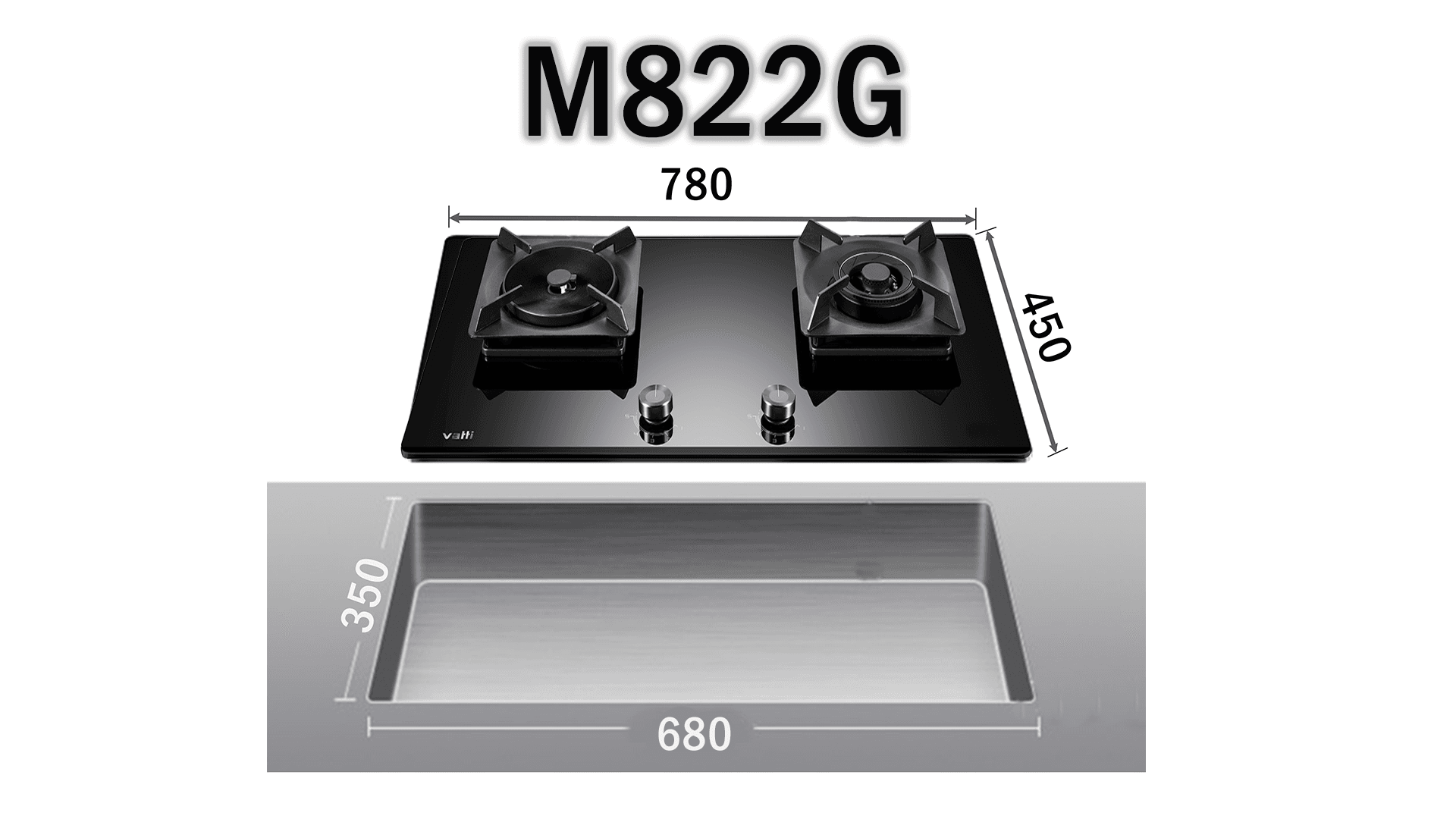

Dimensions and installation

The figures off the M822G drawing, in full. Whether it fits is the question that ends a shortlist, so it is answered here rather than four megabytes into a PDF.

Detail

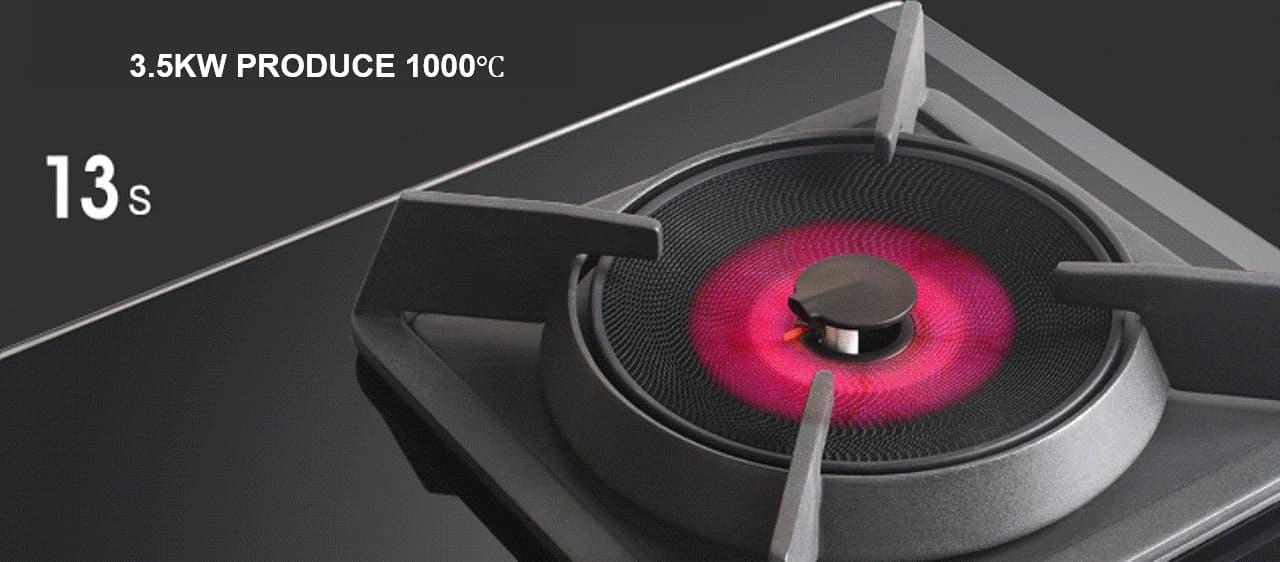

Micro-flame combustion

Nearly ten thousand precision fire holes across the plate instead of a ring of jets: 3.5 kW that reaches 1,000°C, with the heat spread evenly rather than concentrated in a circle.

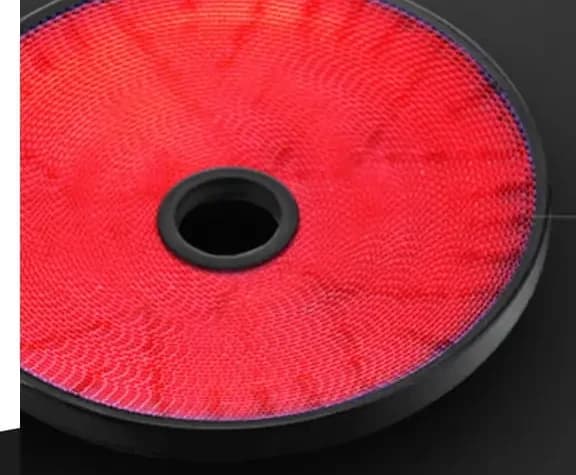

The Olympic plate

The plate is angled at 13.6 degrees so the air outlet is uniform across it, which is what stops a micro-flame burner developing quiet spots. It is the burner VATTI built for the Beijing Olympic torch.

It was a torch first

The Beijing Olympic torch had to stay lit in 65 km/h wind and 55 mm/hour rain. This is the same combustion idea, put under a wok.

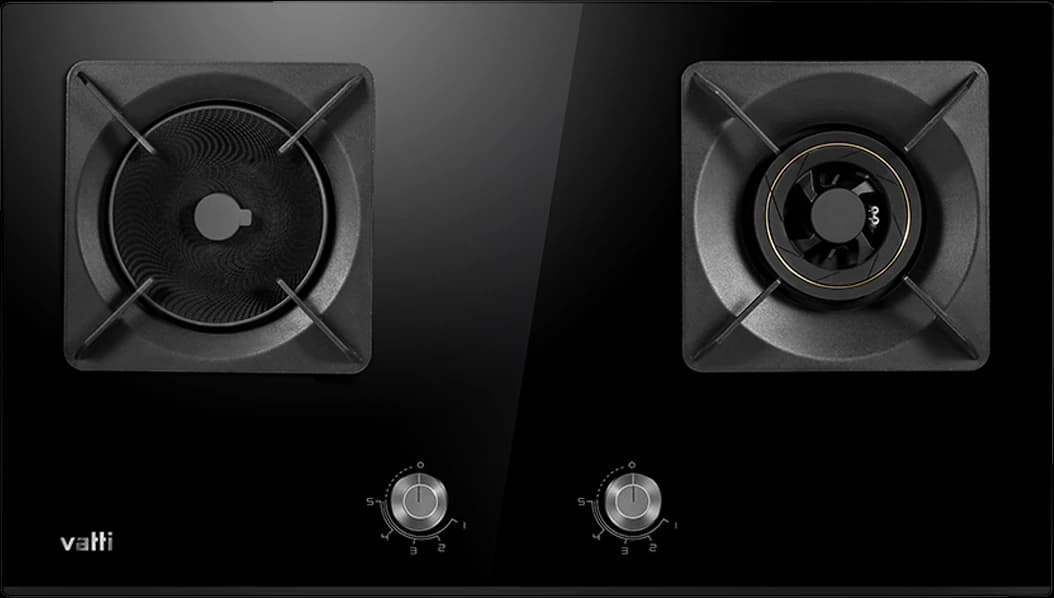

Steam on the left, stir-fry on the right

The two sides are partitioned rather than identical: one burner is set up to hold a steady steam or simmer, the other to take a wok hard. Most cooking is both at once.

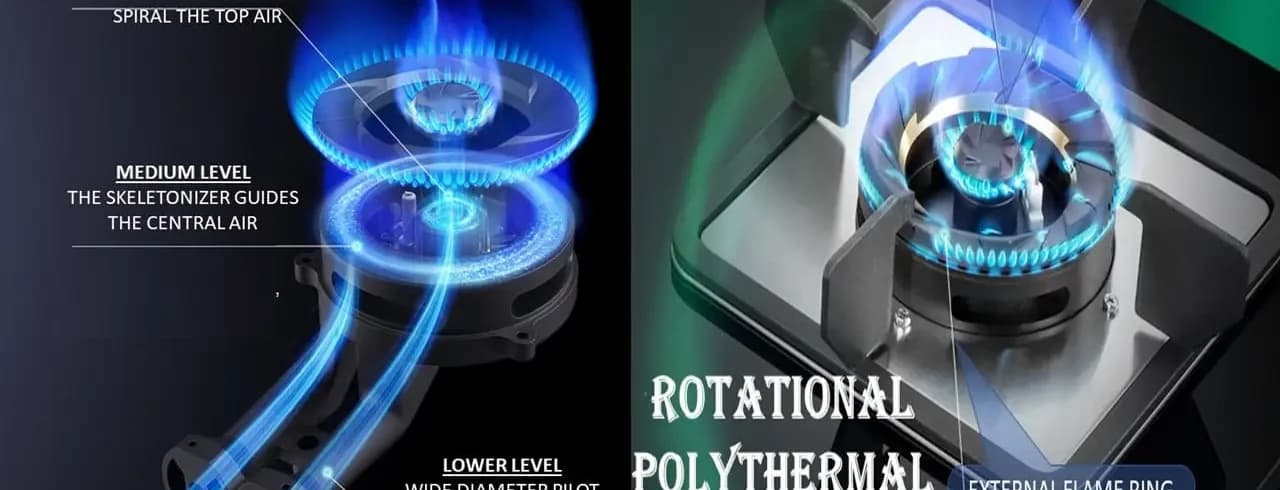

3D oxygen input

Twelve intake slots spiralling the top air, a skeletonizer guiding the central air and a wide pilot tube siphoning the bottom air, which is how a plate of tiny holes gets enough oxygen to burn clean.

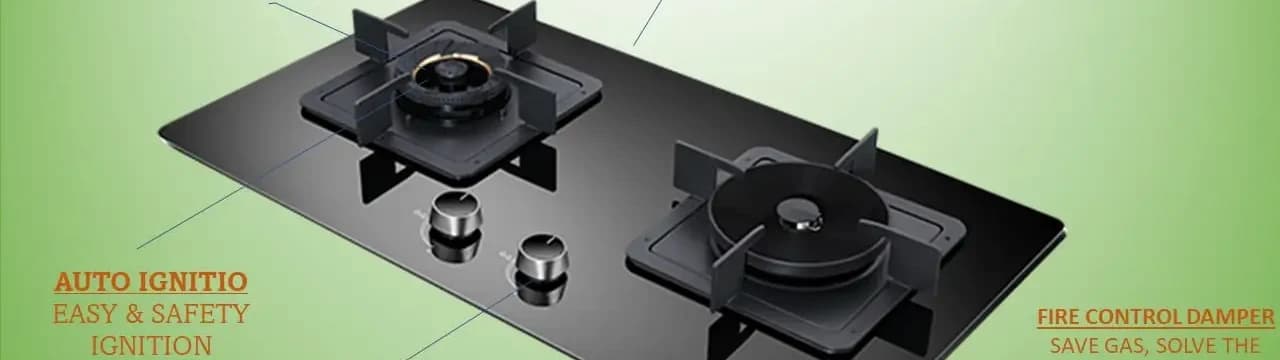

Safety, and the glass

On an accidental shutdown the safety device closes the gas valve and cuts the supply. The top is high-quality tempered glass, rated for high temperature and impact.

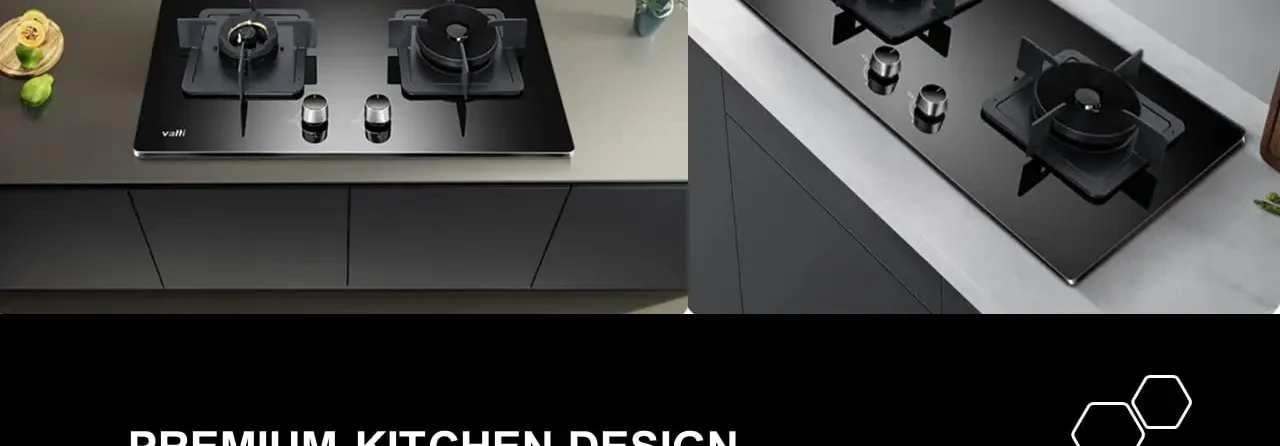

In action

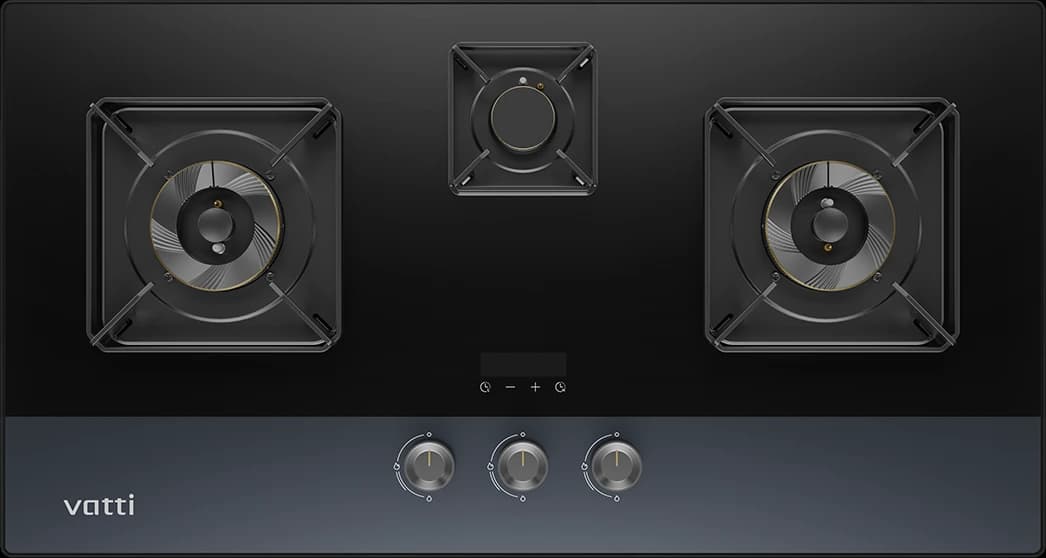

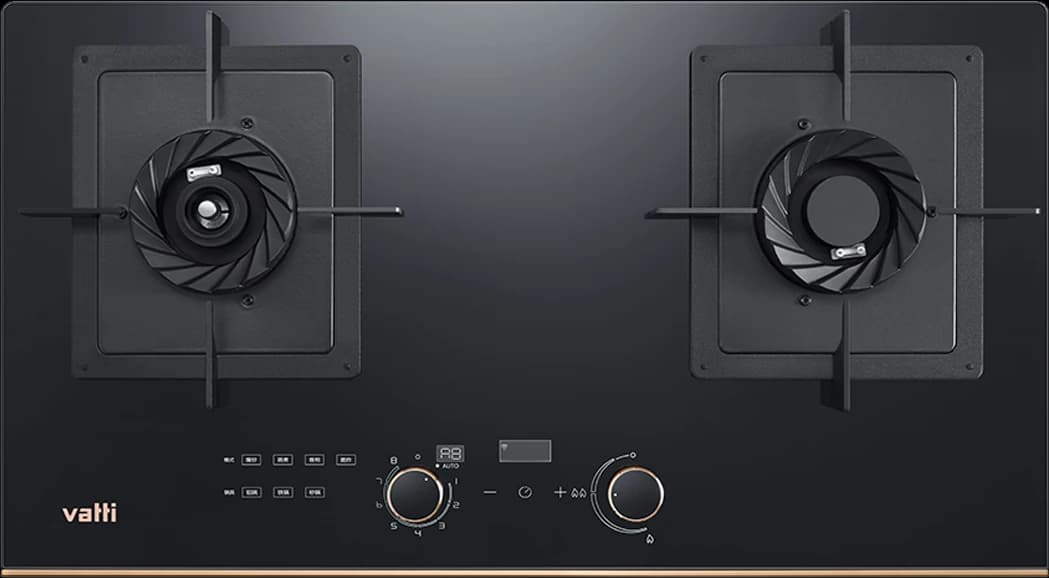

How it compares

The M822G against the models it is usually shortlisted with. Press a column to sort by it.

Questions about the M822G

What is micro-flame combustion?

Instead of a ring of gas jets, the burner plate carries nearly ten thousand tiny holes at a 13.6 degree angle. The flame is spread across the whole plate rather than concentrated in a circle, which is why 3.5 kW reaches 1,000°C at the surface without a hot ring and a cold middle.

What does the Olympic torch have to do with it?

VATTI built the burner for the Beijing Olympic torch, which had to stay lit through 65 km/h winds and 55 mm of rain an hour. The same combustion design is what sits under this hob.

What cut-out does the M822G need?

VATTI publishes no drawing or specification panel for this model, so there is no figure on this page. Have your dealer measure the opening before ordering; the C823G and C821G both state theirs.

What warranty does the M822G carry, and where can I buy it?

Two years on the hob and a lifetime warranty on the glass top, for the original buyer from an authorised dealer; register it at VATTI eWarranty at purchase. VATTI Malaysia does not sell online, so find the nearest dealer in the dealer directory.
